Carrying soiled linen down four flights because the lift is occupied again is not a workflow problem. It is a staffing problem, a hygiene problem, and, over time, a retention problem. If your housekeeping team is spending meaningful hours moving laundry between floors, those hours are coming out of everything else.

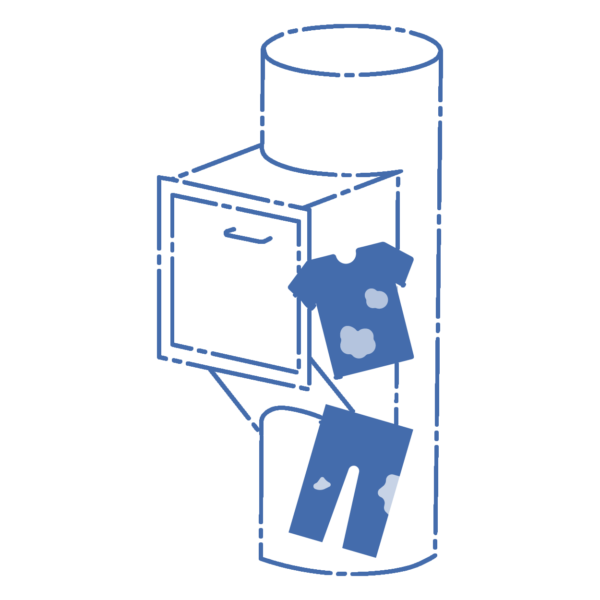

A linen chute makes the building do that work instead. Staff deposit soiled linen into an intake door on any floor. Gravity moves it to a bin or laundry room at ground level. No trolleys, no elevator trips, no one hauling a heavy bag down a fire stairwell at 6am.
For hotels, hospitals, aged care facilities, and large residential buildings, that is the operational case in full.

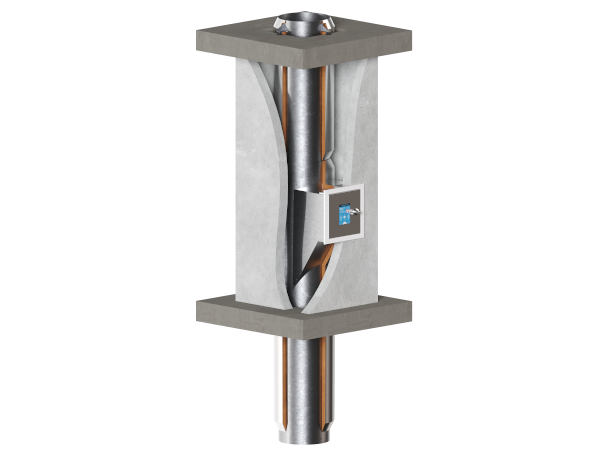

The intake door sits on each floor. Staff deposit linen, the system delivers it below. The chute is fully enclosed, so there are no loose carts in corridors and no linen handling in shared spaces. Clean areas stay clean, which matters more in a hospital ward than on a hotel floor, but it matters on both.
Linen chute systems are designed for facilities where housekeeping volume is high and operational efficiency directly impacts the bottom line:
Hotels and resorts managing large-scale room turnovers
Hospitals and medical centres where hygiene and speed are non-negotiable
Aged care and nursing homes handling daily resident linen
Schools and institutions with consistent high-volume laundry needs
Large multi-storey homes looking for a smarter domestic workflow
The labour-saving is the most direct impact. Hours your team spent moving laundry become hours available for room turnovers, patient care, or whichever task is the real bottleneck in your facility. (If you can share your current housekeeping headcount and floor count, we can give you a more specific estimate on time recovered per shift rather than a generic number.)
Turnaround improves because dirty linen reaches the laundry faster, which means clean linen gets back into circulation sooner. In a hotel running at high occupancy, anything that compresses the gap between checkout and room-ready is worth examining.
On hygiene, reducing manual contact with soiled linen directly reduces cross-contamination risk. In healthcare and aged care, that supports your infection control compliance obligations. In hospitality, it signals the kind of operational discipline that guests notice without being able to name it.
Elephant Foot laundry chute systems are available in a range of materials and configurations to suit different building types, usage volumes and budget requirements:
| Type | Best Suited For |
| Galvanised steel | High-volume commercial environments requiring durability and longevity |
| Stainless steel | Hygiene-critical settings such as hospitals and aged care facilities |
| Plastic (LLDPE) | Cost-effective option for lighter usage residential or commercial applications |
| Single chute | Standard single-shaft configuration for most buildings |
| Dual chute | High-volume facilities requiring simultaneous linen streams or separation of linen types |
All systems are available in custom sizes and can be tailored to your building’s layout and floor plan.
Commercial laundry chutes are wide-bore, fully enclosed, and built with smooth internal ductwork so linens move without catching or snagging. No exposed joints, no rough edges. They are designed to be invisible to guests and patients, which means no laundry carts in corridors and no staff movement through common areas that guests do not need to see.
For multi-storey homes, Elephant Foot makes the same commercial-grade systems scaled to domestic use. If you are building or renovating and have a laundry room below an upstairs bathroom or bedroom, it is worth factoring in whether a domestic laundry chute makes sense during the build. A carpenter or cabinet maker can box out the intake doors to sit flush with your joinery.
Because linen chutes run vertically through multiple floors, fire containment is built into the engineering from the start.
Intake doors are fire-rated at FRL -/120/30 (2-hour rated). Hoppers are self-closing.
Internal fire sprinklers run throughout the shaft, and a fusible link at the discharge door stops fire from travelling upward through the chute.
Ventilation runs full-diameter through the shaft. Exhaust fans manage airflow and odour. Cleaning sprinkler heads handle internal sanitisation.
Every system is designed to your building’s specifications, including custom shaft dimensions, integration into new builds or retrofits, and sound insulation. Elephants Foot manages the full process from consultation through to fabrication and installation, so you are not coordinating multiple contractors or translating technical specifications yourself.
Routine servicing covers chute interiors, doors, and handles. The recommended schedule is weekly or monthly cleaning, six-monthly mechanical inspections, and an annual professional deep clean. Emergency repairs are available 24/7. If your facility runs on a specific operating rhythm, the service team can build a maintenance schedule around it.
As Australia’s largest chute company, Elephant’s Foot has been delivering end-to-end waste management solutions since 1976. With 50+ years of experience, 7,000+ systems delivered, and a 93% client retention rate, we are the trusted choice for Tier 1 builders, developers, and facility managers nationwide. When it comes to linen chute systems, we consult, design, engineer, implement and maintain, whilst bringing decades of hands-on expertise to every build:
Our integrated approach means you have one trusted partner across the full lifecycle of your system. Beyond installation, our teams are on hand for chute cleaning, odour control, preventative maintenance and chute repairs. With Elephants Foot, complete service care is always part of the package.
Yes. All Elephants Foot linen chute systems are designed, manufactured, and installed in full compliance with Australian Standards and the National Construction Code. Our intake doors and chute components meet AS 1530.4:2014 (fire resistance testing) and the current NCC 2022 (C4D14) regulations. While AS 1665 covers the broader design and construction requirements for linen and waste chutes, our systems are engineered to satisfy those requirements as part of a fully code-compliant installation.
Responsibility for certification sits across multiple parties. Elephants Foot handles design compliance, manufacturing to standard, and installation quality assurance. Following installation, our team conducts a thorough inspection and provides formal sign-off documentation. Coordination with a building certifier or private certifier is typically required under the NCC and varies by state and local council jurisdiction. We work alongside project managers, architects, and building certifiers throughout this process to ensure all regulatory sign-off milestones are met. We strongly recommend engaging your local council or an accredited building certifier early in the project to clarify submission requirements for your specific state.
In high-use environments such as aged care facilities, hospitals, and hotels, linen chutes should be professionally cleaned at minimum every three to six months. The exact frequency depends on usage volume, the type of linen being disposed of, and the infection control requirements of your facility. High-traffic healthcare settings may require monthly servicing.
Elephants Foot offers dedicated chute cleaning and ongoing maintenance through EF Service and Care. Our aftercare services cover scheduled cleaning, odour management, chute door inspection, blockage removal, and preventative maintenance. We offer ongoing service contracts tailored to your facility’s requirements, providing 24/7 support and an average emergency response time of under four hours nationally.
Under Work Health and Safety (WHS) legislation, facility operators have a duty to maintain a safe and hygienic workplace. Allowing hygiene standards in a linen chute system to deteriorate can constitute a breach of those duties, particularly in healthcare and aged care settings where infection control obligations under relevant accreditation standards also apply. A regular servicing agreement with Elephants Foot provides documented evidence of due diligence and helps facilities meet their WHS obligations. Contact our Service and Care team at service@elephantsfoot.com.au or call 1300 435 374 to discuss a contract.
Elephants Foot designs and manufactures its chute systems in Australia, using materials selected for durability in local conditions. Our systems are engineered to perform reliably across Australia’s varied climates, including the high-humidity and coastal environments common in Queensland and other coastal regions.
For linen chute applications, stainless steel is the preferred material in environments where hygiene, corrosion resistance, and longevity are critical considerations. Stainless steel outperforms galvanised steel in coastal and high-humidity settings because it resists salt-air corrosion and is significantly easier to clean and sanitise to healthcare-grade standards. Galvanised steel may be appropriate in lower-humidity, inland environments where cost is a primary driver, but for hospitals, aged care, and hotels we recommend discussing stainless steel specification with our team.
For specific warranty terms covering corrosion and wear, please contact our team directly. Given that Elephants Foot manufactures its own equipment, we are able to stand behind our systems in a way that imported chute brands cannot. All warranty details are provided as part of the formal proposal and contract documentation.
Retrofitting is absolutely possible, and Elephants Foot has extensive experience delivering chute solutions into existing buildings. That said, it does require a structured assessment to determine feasibility. The key considerations are whether a continuous vertical shaft can be identified or created through the floors, the structural load-bearing capacity of the building, ceiling and floor void access for connecting intake doors on each level, and the discharge room configuration at the base.
Our process begins with a site analysis and evaluation conducted by our team. We assess the building’s specific constraints and recommend the most effective solution, including any structural modifications that may be needed. We manage the full project scope: from initial consultation and site survey through design and engineering, bespoke manufacturing, installation, quality assurance, and handover with staff training. No aspect of the project is left for the client to coordinate independently.
Aged care providers and hotel groups considering an upgrade to an older property are encouraged to contact us early, as lead times for retrofits depend on the complexity of the structural work involved. Call 1300 435 374 or email chutes@elephantsfoot.com.au to arrange a no-obligation site consultation.
Fire safety is central to how Elephants Foot designs its chute systems. All of our intake doors (hoppers) are fire-rated and have been independently tested to AS 1530.4:2014, meeting the fire resistance levels required under NCC 2022 (C4D14). Each floor-level intake door is self-closing and fire-rated to prevent the chute from acting as a path for fire or smoke to spread between floors.
Where automatic closing dampers are required, these are incorporated into the design to meet the building’s fire compartmentation requirements. Integration with an existing AS 1670 fire detection system is a standard part of our installation scope for projects where the building’s fire system needs to trigger automatic damper closure or door release. Our engineers coordinate directly with the fire systems consultant or your building’s fire contractor to confirm compatibility and ensure the integration is compliant and properly commissioned.
On the question of liability: if a chute system is installed by a non-compliant installer, or if compliance signoffs have not been properly obtained, liability in the event of a fire incident can rest with the building owner, the installer, or both, depending on the circumstances. Elephants Foot’s installations are fully documented, tested, and signed off to Australian Standards, which provides building owners with the evidence required to demonstrate compliance. We strongly recommend that all clients retain the installation compliance documentation as part of their building’s fire safety records.
Yes. Elephants Foot’s intake doors can be specified with a range of access control and customisation options to suit aged care, healthcare, and hotel environments. All doors are fitted with self-closing mechanisms as standard, which is a fire safety and hygiene requirement. Beyond that baseline, doors can be configured with key-lock access restrictions, and integration with swipe-card or building access systems can be discussed as part of the project specification, particularly relevant for infection control environments where limiting staff access to designated personnel is a clinical requirement.
Door finishes can be specified to suit the aesthetic of the corridor environment, including stainless steel, powder-coated finishes, and custom colours. For aged care and healthcare facilities operating under AS 1428 accessibility requirements, door configurations can be discussed with our engineering team to ensure lever handles, door weights, and approach clearances are appropriate for the setting.
We recommend raising access control and finish requirements during the design phase so they can be built into the specification from the outset. Contact our chutes team at chutes@elephantsfoot.com.au to discuss customisation options for your project.
The linen collection room at the base of the chute, sometimes called the discharge room or laundry collection area, needs to be planned carefully to ensure safe, hygienic, and efficient operation.
At a minimum, the room requires sufficient floor space to accommodate the discharge attachment and your chosen collection system. Elephants Foot supplies a range of discharge attachment options to suit different building sizes and waste output volumes, including systems that feed directly into collection trolleys or bag-frame holders. Our team will advise on the most appropriate discharge configuration during the design phase.
For the room itself, the following should be considered:
For linen chute applications, Elephants Foot supplies the Type H discharge door – a lockable, 2-hour fire-rated side-hinged door attached to the base of the chute, providing a safe and accessible collection point. Our EF Service and Care team can assist with room layout advice and waste room restoration as part of a new installation or an upgrade to an existing facility. Contact us on 1300 435 374 or service@elephantsfoot.com.au to discuss your requirements.
Simply contact us to schedule a consultation. We will work with you to assess your needs and develop a customised plan.For more information on our best practice guidelines and educational strategies, inquire now and take the first step towards optimising your waste management practices.
